Classic Mini Door Alignment & Hinge Shim Fitting Guide
Uneven door gaps, a trailing edge that sits too high or low, or a door that catches the striker are all common alignment problems on older Classic Minis with wind-up windows. Before replacing hinges or moving the striker, it is worth checking whether the door simply needs to be correctly shimmed at the hinge-to-body mounting points.
This guide explains how to diagnose Classic Mini door alignment problems and use the IPNG Automotive Classic Mini Door Shim Fitting Kit (IP-0018) to make controlled adjustments. It focuses on small alignment corrections rather than using the striker to pull a badly positioned door into place.
Important: hinge shims cannot repair worn hinges, loose fixings, a cracked door frame, corrosion around the A-post or previous accident/bodywork damage. Check the structure and hinge condition before attempting alignment.
Installation Overview
| Application | Classic Mini models with wind-up windows / internal door hinges |
|---|---|
| IPNG Part | IP-0018 |
| Difficulty | ★★★☆☆ |
| Estimated Time | Approximately 30–90 minutes per door |
| Permanent Modification | None when adjustment is achieved using shims |
| Recommended Help | A second person or suitable padded door support |
What Is Included in IP-0018?

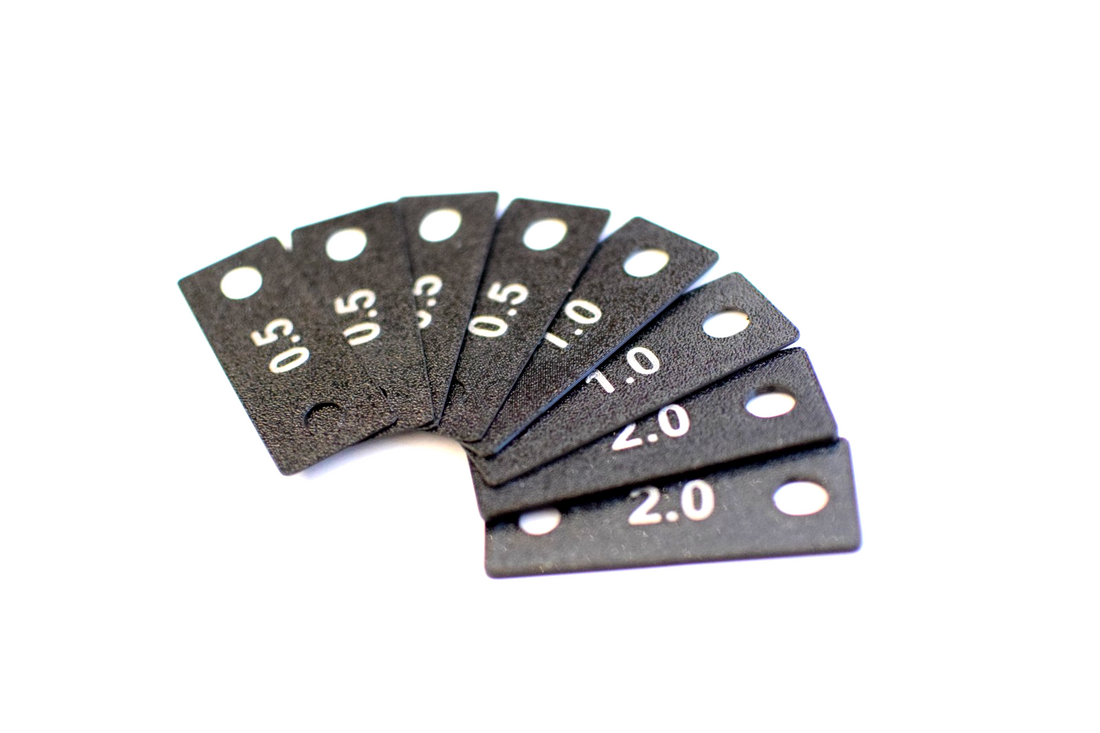

The IPNG door shim kit provides several thicknesses so the alignment can be adjusted progressively rather than making one large change:
- 2 × 2mm shims
- 2 × 1mm shims
- 4 × 0.5mm shims
Start with the smallest correction likely to solve the problem. Door alignment is a trial-and-check process, and a 0.5mm change at a hinge can make a noticeable difference at the rear edge of the door.
Before Adjusting the Door: Find the Actual Problem
Do not begin by moving the striker. First close the door slowly and inspect how it sits in the aperture. Look at the front and rear gaps, the sill gap, the swage/body line and whether the outer door skin sits reasonably flush with the surrounding panels.
Check for hinge wear or movement
Open the door and support its outer rear edge. Gently check for movement at the hinges. Noticeable play, loose hinge fixings or a door that can be lifted independently of the body may indicate hinge wear or another mechanical fault that should be repaired before shimming.
Inspect the A-post and door structure
Check the metal around the hinge mounting points for corrosion, cracking, distortion or previous repairs. A shim should not be used to compensate for unsound structure.
Check the door seal
A thick, incorrectly fitted or recently replaced aperture seal can make an otherwise correctly aligned door difficult to close. Confirm the panel gaps before assuming the hinges need adjustment.
Assess the striker last
The striker should guide and latch a correctly positioned door; it should not be used to lift a sagging door or force a misaligned door into the aperture. Set the hinge alignment first, then make small striker adjustments if required.
How Classic Mini Door Hinge Shims Affect Alignment
On wind-up-window Minis, the alignment shims fit at the hinge-to-body mounting area. Adjusting the thickness at the upper and lower hinges changes the angle of the door in the opening.
IPNG reference diagram showing the door-gap terminology, hinge-shim position and the effect of upper and lower hinge adjustment on a wind-up-window Classic Mini door.
Adding a shim at the lower hinge
Adding shim thickness at the lower hinge raises the rear / trailing edge of the door. This is useful where the back of the door sits slightly low or catches low on the striker.
Adding a shim at the upper hinge
Adding shim thickness at the upper hinge produces the opposite angular correction and lowers the rear / trailing edge of the door.
Changing both hinges
Changing the shim thickness at both hinges by a similar amount alters the overall relationship between the door and aperture with less deliberate change to the rear-edge angle than adjusting only one hinge. Use this only after assessing both the front and rear gaps, and make small changes before rechecking the fit.
Typical Alignment Symptoms
| Symptom | What to check / possible adjustment |
|---|---|
| Rear edge of door sits too low | Check hinge condition first, then consider adding a small shim at the lower hinge or reducing excess shim at the upper hinge. |
| Rear edge of door sits too high | Check hinge condition first, then consider adding a small shim at the upper hinge or reducing excess shim at the lower hinge. |
| Door catches the striker | Check door height and hinge alignment before moving the striker. |
| Door gaps are reasonably even but the door sits too far in or out when latched | Check the striker position and seal compression after hinge alignment is correct. |
| Door drops noticeably when opened | Investigate hinge wear, loose fixings or structural damage before using shims. |
| One corner sits badly out while the opposite corner is correct | Check for door-frame distortion, hinge damage or previous body repair before assuming shims alone will correct it. |
Tools & Preparation
- Suitable spanners/sockets for the door hinge fasteners
- Padded jack, door stand or other suitable support
- Masking tape
- Marker pen or fine pencil
- IPNG IP-0018 shim kit
- A second person where possible
Protect the A-panel, sill edge and door edge with masking tape before beginning. Door alignment often takes several trial fits, and simple paint protection can prevent chips while the door is being supported and repositioned.
Classic Mini Door Shim Fitting Procedure
1. Record the starting position
Close the door gently and inspect all visible gaps. Note whether the rear edge is high or low, whether the swage line lines up with the rear quarter and where the door first contacts the striker or aperture.
Take photographs before adjustment and mark useful reference points with masking tape. This gives you a known starting position if an adjustment makes the fit worse.
2. Check the hinges and structure
Inspect the hinge fixings, hinge movement, door frame and A-post. If there is significant play, corrosion, cracking or loose structure, repair the underlying problem before continuing.
3. Support the weight of the door
Support the outer edge of the door using a padded stand or jack so the hinge fasteners are not carrying the full unsupported weight while loosened. Do not support the door by the glass or window frame.
4. Protect the surrounding paintwork
Apply masking tape to the A-panel edge, sill and adjacent door edges. If the door needs to be moved away from the body to insert a shim, the protection helps prevent accidental paint damage.
5. Select the initial shim thickness
Begin with the smallest sensible change. For fine alignment, a 0.5mm shim is normally the best starting point. The 1mm and 2mm shims allow larger corrections or combinations once you understand how the door responds.
6. Loosen the relevant hinge mounting
With the door securely supported, loosen the mounting at the hinge you intend to adjust sufficiently to insert or change the shim. Keep the opposite hinge controlled so the door does not suddenly shift.
Work methodically and avoid loosening more of the assembly than necessary. If access on your particular car means the door must be moved further away from the A-post, use a second person to stabilise it.
7. Insert or change the shim
Place the required IP-0018 shim at the hinge-to-body mounting position, keeping it flat and correctly located around the mounting points. Refit and tighten the hinge mounting securely.
Do not stack a large amount of shim immediately. Small progressive changes make it much easier to understand how each adjustment affects the door.
8. Remove the support and check the door under its own weight
Once the mounting is secure, remove the temporary support and allow the door to hang normally. Slowly close it without slamming.
Check the rear-edge height, front and rear gaps, sill gap and swage-line alignment. Do not judge the final position while a jack or stand is still carrying some of the door's weight.
9. Repeat in small increments
If the alignment still needs improvement, support the door again and change the shim thickness by one small step. Continue until the door sits as evenly as reasonably possible for the individual shell and door.
Classic Mini panel fit varies from car to car, especially where doors, skins or body panels have been replaced, so the aim is an even practical fit rather than forcing every gap to an arbitrary measurement.
10. Adjust the striker only after the door position is correct
Once the door hangs correctly in the aperture, assess the latch and striker. If the panel gaps are good but the door closes too far in, remains slightly proud or the latch engagement is not centred, make very small striker adjustments and retest.
The door should close without needing to be lifted or forced onto the striker.
11. Complete the final checks
- Open and close the door several times.
- Confirm the door does not drop noticeably as it opens.
- Check that the latch engages cleanly.
- Check the front, rear, upper and sill gaps again.
- Check that the door seal is not being crushed excessively in one area.
- Wind the window fully up and down and confirm the frame does not foul the aperture or seal.
- Recheck all hinge and striker fasteners.
Common Mistakes to Avoid
Adjusting the striker first
A striker can disguise a height problem by forcing the door into position as it closes. Correct the hinge-supported door position first.
Using shims to hide worn hinges or corrosion
If the door has obvious free play or the A-post/door frame is unsound, adding shims is not the correct repair.
Making a large adjustment in one step
Use the 0.5mm increments to learn how the door responds. Large changes can quickly move the opposite corner further out of alignment.
Checking alignment while the door is still supported
The final fit must be assessed with the door carrying its own weight.
Slamming the door during adjustment
Close the door slowly until you are satisfied that it will clear the striker and surrounding panels.
Frequently Asked Questions
Where do Classic Mini door shims fit?
On the wind-up-window/internal-hinge arrangement covered by IP-0018, the alignment shim is fitted at the hinge-to-body / A-post mounting point.
Which hinge should I shim if the rear of the door is low?
After confirming the hinges and structure are sound, adding a small amount of shim at the lower hinge raises the rear edge of the door.
What if the rear of the door is too high?
The opposite correction can be made at the upper hinge. Work in small increments and recheck the whole door gap after every change.
Should I adjust the striker to lift the door?
No. The striker should not be used to support or lift a sagging door. Establish the door position on the hinges first, then adjust the striker for clean latch engagement and flushness.
Why are several shim thicknesses supplied?
The 0.5mm, 1mm and 2mm sizes allow controlled adjustment and combinations for different cars. Because Classic Mini shells and doors vary, there is no single thickness that is correct for every vehicle.
Will the shims fix a door that drops when opened?
Not necessarily. A door that visibly drops or has free play may have worn hinges, loose mountings or structural damage. Diagnose those faults before fitting alignment shims.
Does IP-0018 fit early external-hinge Minis?
IP-0018 is intended for wind-up-window Classic Mini door arrangements. Do not assume the same fitting method applies to earlier external-hinge doors.
IPNG Classic Mini Door Shim Fitting Kit – IP-0018
The IPNG Automotive Classic Mini Door Shim Fitting Kit provides a selection of 0.5mm, 1mm and 2mm door-alignment shims for making progressive adjustments on compatible wind-up-window Mini doors.
Use the smallest practical adjustment, check the door under its own weight after every change and correct mechanical or structural faults before attempting to tune the panel gaps.
